AC motors convert electrical energy into mechanical energy using magnetic fields, with induction and synchronous motors being the main types.

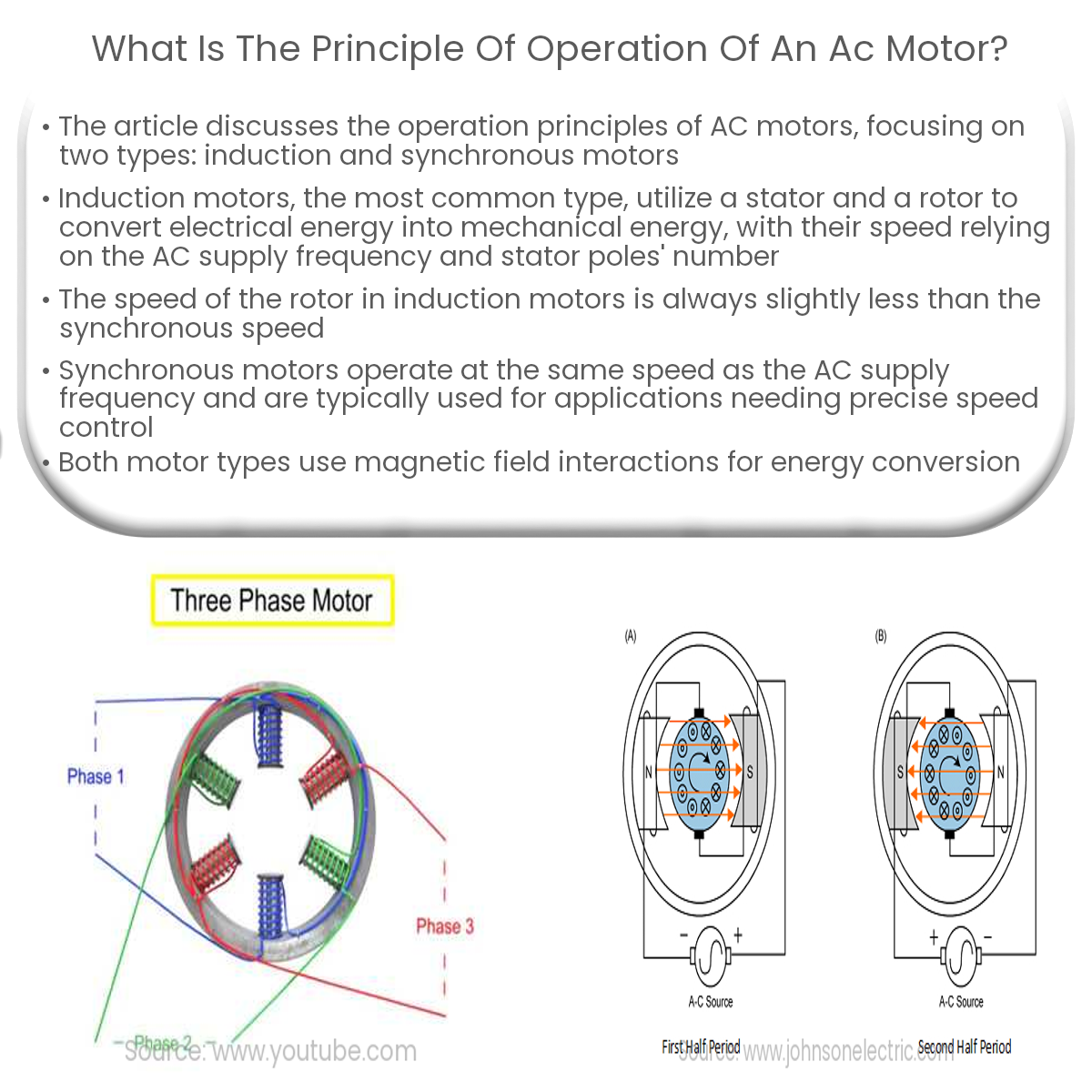

Principle of Operation of an AC Motor
An AC motor is an electric motor that operates on alternating current (AC), which periodically reverses its direction. There are two main types of AC motors: induction motors and synchronous motors. Both types use the interaction of magnetic fields to convert electrical energy into mechanical energy.
Induction Motors
Induction motors, also known as asynchronous motors, are the most common type of AC motor. They consist of a stator and a rotor. The stator contains a series of windings that create a magnetic field when energized by an AC supply. This magnetic field induces a current in the rotor windings, which generates its own magnetic field. The interaction between the stator and rotor magnetic fields creates a torque that causes the rotor to rotate.
The speed of the induction motor depends on the frequency of the AC supply and the number of poles in the stator windings. The rotor speed is always slightly less than the synchronous speed, and the difference is called slip. This slip allows the rotor to develop torque and maintain its rotation.
Synchronous Motors
Synchronous motors, unlike induction motors, operate at the same speed as the frequency of the AC supply. They have a stator with windings similar to those in an induction motor, and a rotor that contains either permanent magnets or windings connected to a separate DC supply. This rotor design creates a constant magnetic field, which interacts with the stator’s rotating magnetic field to produce torque.
In some cases, a synchronous motor may start as an induction motor, and then, once it reaches a certain speed, a DC supply is applied to the rotor windings, causing the motor to operate synchronously. Synchronous motors are commonly used in applications that require precise speed control or constant speed under varying loads.
Conclusion
Both induction and synchronous AC motors rely on the interaction of magnetic fields to convert electrical energy into mechanical energy. Induction motors are more common due to their simplicity, low cost, and robustness. Synchronous motors are used when precise speed control is needed. The choice between the two types depends on the specific requirements of the application.
