What are the applications of voltage multiplier circuits?

Voltage multiplier circuits are used in high-voltage power supplies, electrostatic precipitators, photomultiplier tubes, X-ray machines, particle accelerators, lasers, electric fences, and testing equipment.

Applications of Voltage Multiplier Circuits

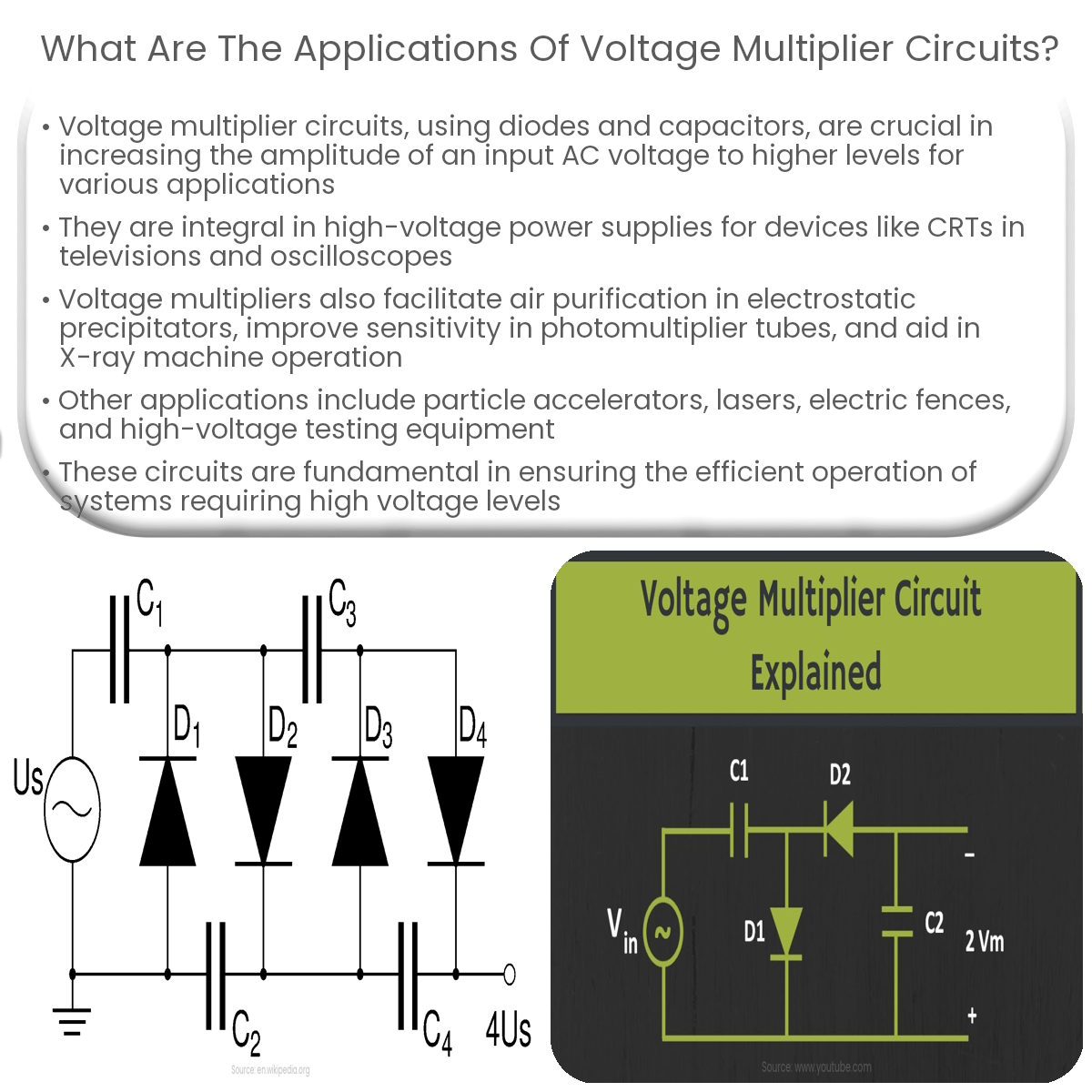

Voltage multiplier circuits are essential in many electrical and electronic systems. They are used to increase the amplitude of an input alternating current (AC) voltage to a higher level by utilizing diodes and capacitors. The following are some common applications of voltage multiplier circuits:

1. High-Voltage Power Supplies

Voltage multiplier circuits are frequently used in high-voltage power supplies, such as those needed for cathode ray tubes (CRTs) in older television sets and oscilloscopes. These circuits generate the high voltages necessary for the operation of these devices.

2. Electrostatic Precipitators

Electrostatic precipitators, commonly used for air purification, require high voltage to ionize and collect pollutants effectively. Voltage multipliers are used to generate the necessary voltage levels for the efficient operation of these devices.

3. Photomultiplier Tubes

Photomultiplier tubes (PMTs) are highly sensitive light detectors used in scientific research and medical applications. Voltage multiplier circuits provide the high voltage required to accelerate electrons in the PMTs, amplifying the signal and improving sensitivity.

4. X-Ray Machines

X-ray machines require high voltages to produce X-rays for medical imaging and industrial inspection purposes. Voltage multiplier circuits help generate the high voltages needed for X-ray tubes to operate effectively.

5. Particle Accelerators

Particle accelerators, such as those used in nuclear physics research, require extremely high voltages to accelerate charged particles. Voltage multiplier circuits play a crucial role in generating the necessary voltages for these complex systems.

6. Lasers

Some types of lasers, particularly gas lasers, require high voltages for their operation. Voltage multipliers help generate the required voltage levels for efficient laser operation and performance.

7. Electric Fences

Electric fences used for animal containment or security purposes rely on high voltages to deter intruders or animals from crossing the fence. Voltage multiplier circuits help generate the necessary voltage levels for these applications.

8. High-Voltage Testing Equipment

High-voltage testing equipment, such as insulation testers and dielectric strength testers, use voltage multipliers to generate the high voltage levels required for testing electrical components and devices.

In conclusion, voltage multiplier circuits play a vital role in numerous applications where high voltages are necessary. These circuits enable the efficient and reliable operation of various devices and systems that rely on high voltage levels for their functioning.
