Introduction to Spark Gaps
The world of electronics is fascinating and complex, with many different components each playing their unique roles. One such component, often overlooked but integral in many systems, is the spark gap. This simple, yet powerful device has been a cornerstone in many technological advancements and continues to find relevance even in today’s high-tech era.

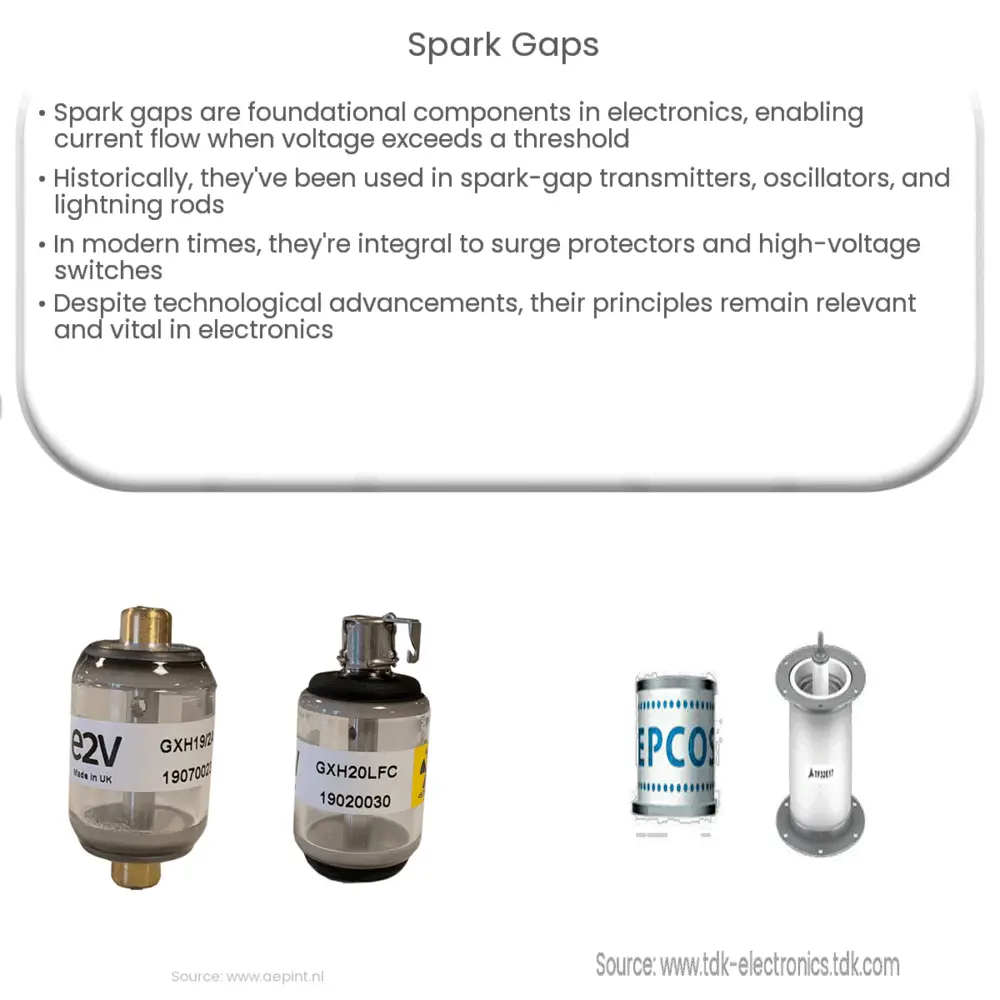

What is a Spark Gap?
A spark gap essentially consists of an arrangement of two conducting electrodes separated by a gap usually filled with a gas such as air, designed to allow an electric spark to pass between the conductors. When the voltage in the circuit exceeds the breakdown voltage of the gas within the gap, a spark forms, ionizing the gas and drastically reducing its resistance. This allows current to flow and complete the circuit.
Historical Use of Spark Gaps
- One of the earliest uses of spark gaps was in spark-gap transmitters. These were used during the wireless telegraphy era, which lasted from the 1880s into the early 1920s. Radio operators would manipulate the spark gap to create signals that could be picked up by a receiver.
- Spark gaps were also a crucial component of early oscillators. In these devices, a spark gap served as a switch that could rapidly connect and disconnect a power source, generating an oscillating current.
- Another notable usage of spark gaps can be found in lightning rods. The spark gap in a lightning rod provides a path of least resistance for the lightning to follow, directing it safely into the ground and away from structures or people.
Modern Applications of Spark Gaps
Despite the advent of newer technologies, spark gaps still find applications in modern electronic systems. They are used in surge protectors to protect electronic devices from voltage spikes. When the voltage exceeds a certain level, the spark gap fires, grounding the excess voltage and protecting the connected equipment. Another common application of spark gaps is in high-voltage switches, where they are used to abruptly initiate or terminate a high-voltage current.
The Science Behind Spark Gaps
The functioning of a spark gap is rooted in the principle of dielectric breakdown. When the electric field within a gas (air, in most cases) exceeds its breakdown voltage1, it ionizes, becoming a conductor and allowing current to pass through.
Understanding Breakdown Voltage
The breakdown voltage is a crucial concept in the functionality of a spark gap. This is the minimum voltage that causes a portion of an insulator to become electrically conductive. In the case of a spark gap, the insulator is usually air or another gas. When the voltage across the electrodes surpasses this breakdown voltage, an electric spark occurs, turning the gas into a conductor and allowing current to flow across the gap.
Types of Spark Gaps
- Two-electrode Spark Gaps: The most basic type of spark gap consists of two electrodes with a gas-filled gap between them. This is commonly used in spark plug design and basic switch applications.
- Three-electrode Spark Gaps: These have an additional electrode, often designed to control the initiation of the spark. They are frequently used in controlled environments like laboratories.
- Rotary Spark Gaps: These use a motor to rotate one or more electrodes, allowing for precise control over the timing of the spark. They were widely used in early radio transmitters.
Factors Influencing Spark Gap Performance
Several factors can affect the performance and reliability of a spark gap. The gap distance is a primary factor: a wider gap requires a higher voltage to initiate a spark. The type and pressure of the gas in the gap also plays a significant role. For instance, spark gaps filled with noble gases can handle higher voltages than those filled with air. Additionally, the shape and material of the electrodes can influence the spark gap’s performance.
Conclusion
Spark gaps, while seemingly simple, are intricate devices with a rich history and a variety of modern applications. From early radio transmitters to modern surge protectors and high-voltage switches, they have played a crucial role in the evolution of electronics. Understanding the workings of a spark gap offers a fascinating glimpse into the principles of electric conduction and dielectric breakdown, underscoring the complexity hidden within even the most basic electronic components.
Despite advancements in technology, the principles underlying spark gaps continue to be of relevance, offering solutions to unique challenges in electronics and electrical engineering. Their simplicity, reliability, and effectiveness ensure that they will remain a fundamental component in electronic systems for years to come.
