Coulomb counters measure current in a circuit, integrate it over time to calculate charge, and multiply by voltage to estimate energy consumed.

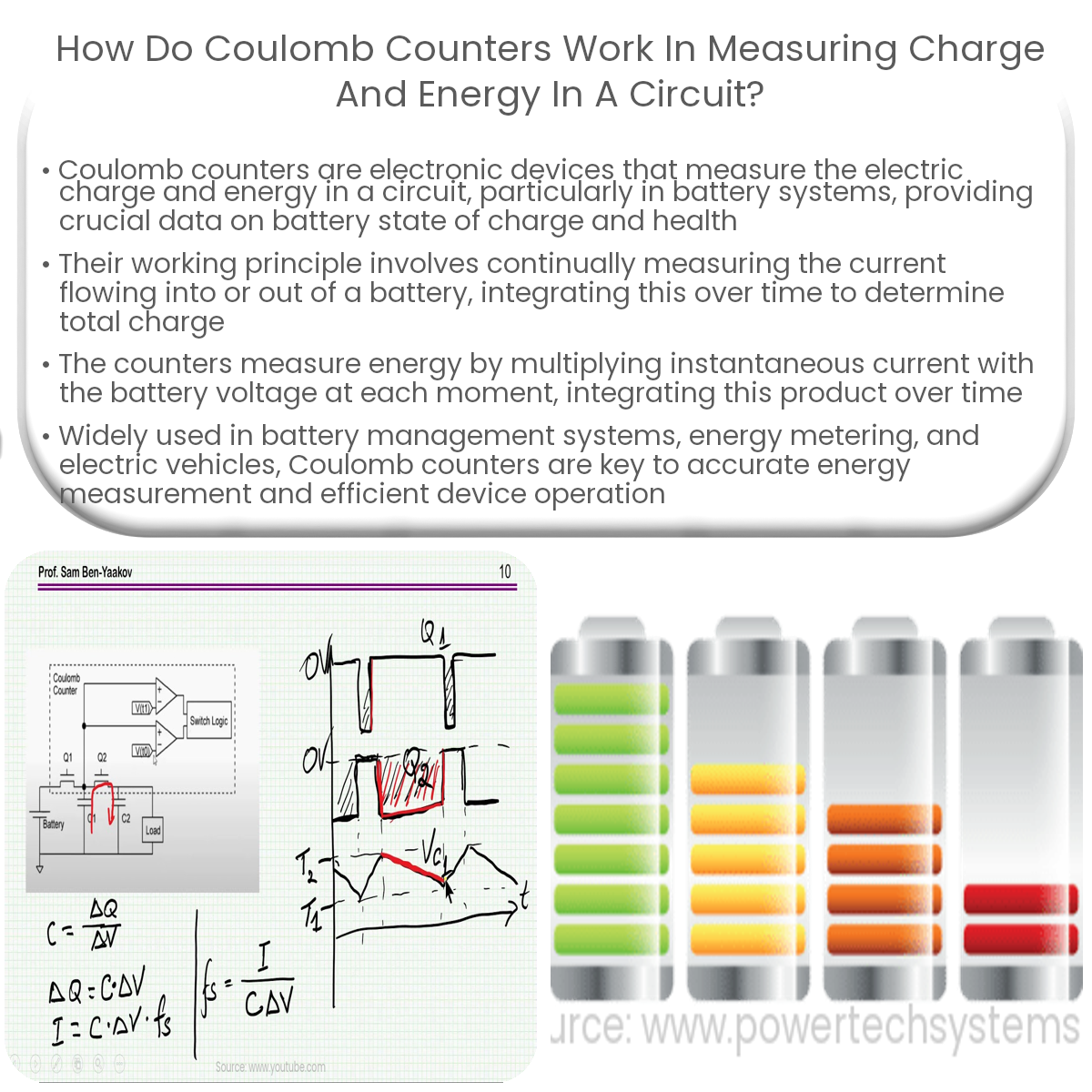

Understanding Coulomb Counters
A Coulomb counter is an electronic device designed to measure the electric charge and energy passing through a circuit, specifically in battery systems. It is a crucial component in battery management systems, providing accurate information on the state of charge (SOC) and state of health (SOH) of a battery.
Working Principle
The basic principle behind a Coulomb counter is to continuously measure the current flowing into or out of a battery and integrate it over time to determine the total charge. The current is measured by sensing the voltage drop across a low-value, high-precision resistor (shunt resistor) placed in series with the battery. This voltage drop is then amplified and converted into a digital signal by an analog-to-digital converter (ADC).
Integration Process
The digital signal obtained from the ADC is integrated over time to calculate the total charge that has passed through the circuit. This process is carried out by a microcontroller or a dedicated integrated circuit, which also corrects for temperature variations, offsets, and other error sources.
Energy Measurement
To measure the energy, the Coulomb counter multiplies the instantaneous current with the battery voltage at each moment, and then integrates the product over time. This gives an estimate of the total energy consumed or generated by the battery.
Applications
- Battery Management Systems: Coulomb counters are extensively used in battery management systems (BMS) to monitor and control the charge and discharge processes, ensuring efficient and safe operation.
- Energy Metering: In energy metering applications, Coulomb counters help to measure the energy consumption of devices, enabling better energy management and conservation.
- Electric Vehicles: They play a vital role in electric vehicles (EVs), providing essential information on the remaining charge, driving range, and overall battery health.
In summary, Coulomb counters are essential tools for accurately measuring charge and energy in battery-powered systems. By continuously monitoring the current flow and integrating it over time, they provide critical information on battery performance and help to optimize the operation of various electronic devices.
