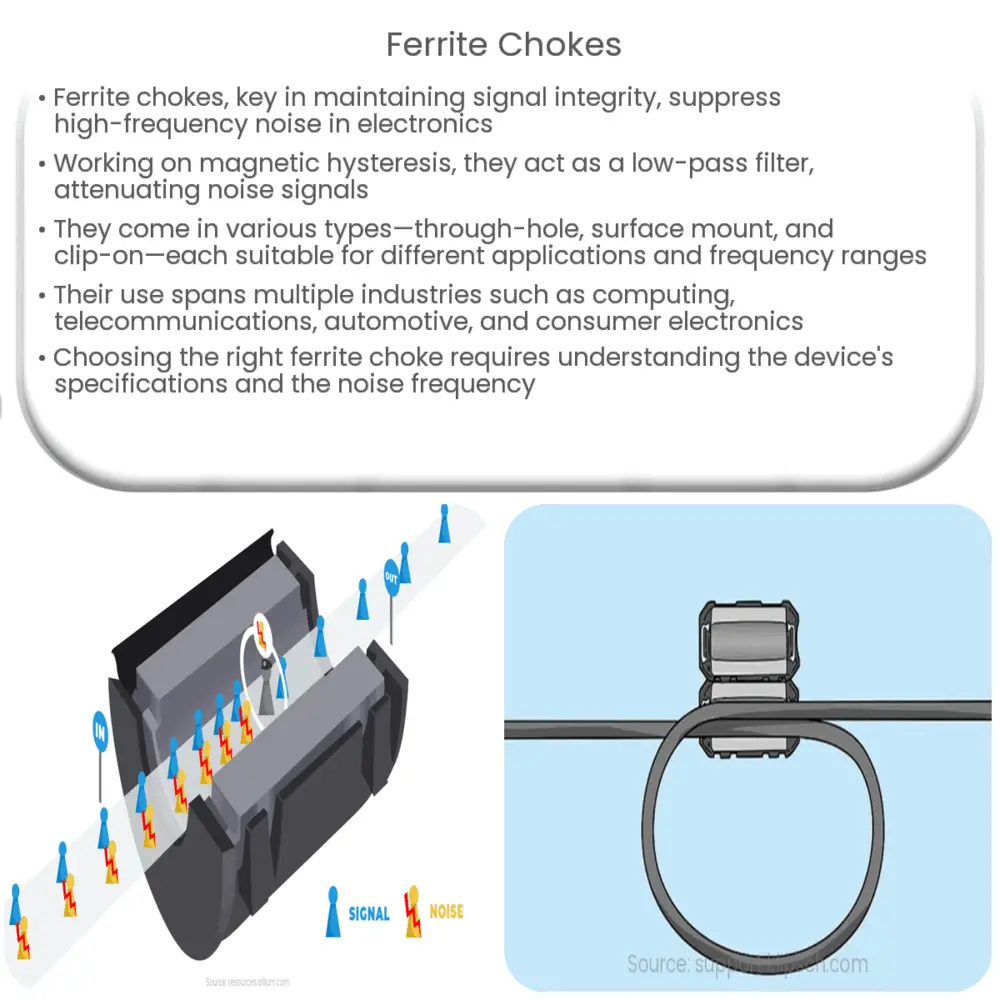

Ferrite Chokes: An Overview
Ferrite chokes, often referred to as ferrite beads or ferrite cores, are a type of passive electronic component used to suppress high-frequency noise in electronic circuits. They play a pivotal role in maintaining the overall signal integrity and eliminating interference in the digital domain.
The Science Behind Ferrite Chokes
The workings of ferrite chokes are based on the principle of magnetic hysteresis within the ferrite material. This magnetic hysteresis can be best understood by delving into the fundamental laws of physics.
- High-frequency signals: The ferrite choke acts as a low-pass filter. High-frequency signals or noise typically have enough energy to penetrate through most materials. However, when these signals pass through a ferrite choke, the magnetic properties of the ferrite material cause these signals to be ‘choked’ or attenuated.
- Magnetic permeability: The ferrite material has high magnetic permeability, which means it is susceptible to becoming magnetized. When the high-frequency signals pass through the ferrite material, it becomes magnetized and then demagnetized rapidly. This rapid magnetization and demagnetization process dissipates the energy of the high-frequency signals as heat, thereby suppressing the noise.
Types of Ferrite Chokes
Ferrite chokes come in various shapes, sizes, and designs, each catering to a specific type of application. Let’s explore the common types:
- Through-hole ferrite chokes: These are often used in circuit board applications where they are mounted directly onto the board. They are characterized by their cylindrical shape and two lead terminals.
- Surface mount ferrite chokes: These chokes are small, flat, and are designed to be mounted onto the surface of a circuit board. They are typically used in compact, high-speed digital devices.
- Clip-on ferrite chokes: These chokes are designed to be clipped onto cables or wires. They are typically used in applications where retrofitting a ferrite choke is necessary.
Each type of ferrite choke is designed to be effective at suppressing noise at different frequency ranges. Therefore, selecting the right type of ferrite choke requires a solid understanding of the noise problem at hand, the frequency at which the noise is present, and the specific requirements of the device or circuit.
Applications of Ferrite Chokes
Ferrite chokes are used in a plethora of applications across multiple industries due to their ability to suppress high-frequency noise. Here are a few notable applications:
- Computing: Ferrite chokes are crucial components in computer hardware. They help in reducing the electromagnetic interference (EMI) which can affect the performance of the device.
- Telecommunications: Ferrite chokes play an important role in enhancing the clarity of signal transmissions by reducing noise.
- Automotive: With the increasing complexity of electronic systems in vehicles, ferrite chokes are used to keep the systems running smoothly without interference.
- Consumer Electronics: In TVs, radios, and other consumer electronics, ferrite chokes are used to reduce noise and improve signal quality.
Key Considerations when Choosing Ferrite Chokes
Choosing the right ferrite choke for your application is not a straightforward task, as it involves understanding multiple factors such as the frequency of the noise, the impedance needed, the DC resistance, the current handling capacity, and the mounting type. A poor selection can lead to ineffective noise suppression, or worse, additional issues in the circuit.
Conclusion
In the world of electronics, ferrite chokes are silent warriors, combating and suppressing high-frequency noise that could otherwise disrupt the optimal functioning of devices. By understanding the science behind their operation, recognizing the different types, and being aware of their various applications, we can appreciate their role in ensuring the smooth operation of our everyday electronic devices. Choosing the right ferrite choke, therefore, requires careful consideration of the device specifications and the frequency of noise interference. The humble ferrite choke might be small in size, but its impact on the performance and reliability of electronic circuits is indeed significant.
