Biconical Antenna: The Fundamentals

Introduction

The biconical antenna is a unique and versatile type of antenna that is commonly used in various applications, including radio frequency (RF) measurements, electromagnetic compatibility (EMC) testing, and spectrum analysis. Its distinct design, featuring two cone-shaped elements arranged back-to-back, offers a wideband performance and omnidirectional radiation pattern. In this article, we will explore the principles behind the biconical antenna’s functionality, its design parameters, and its applications in the world of communication and testing.

Design and Functionality

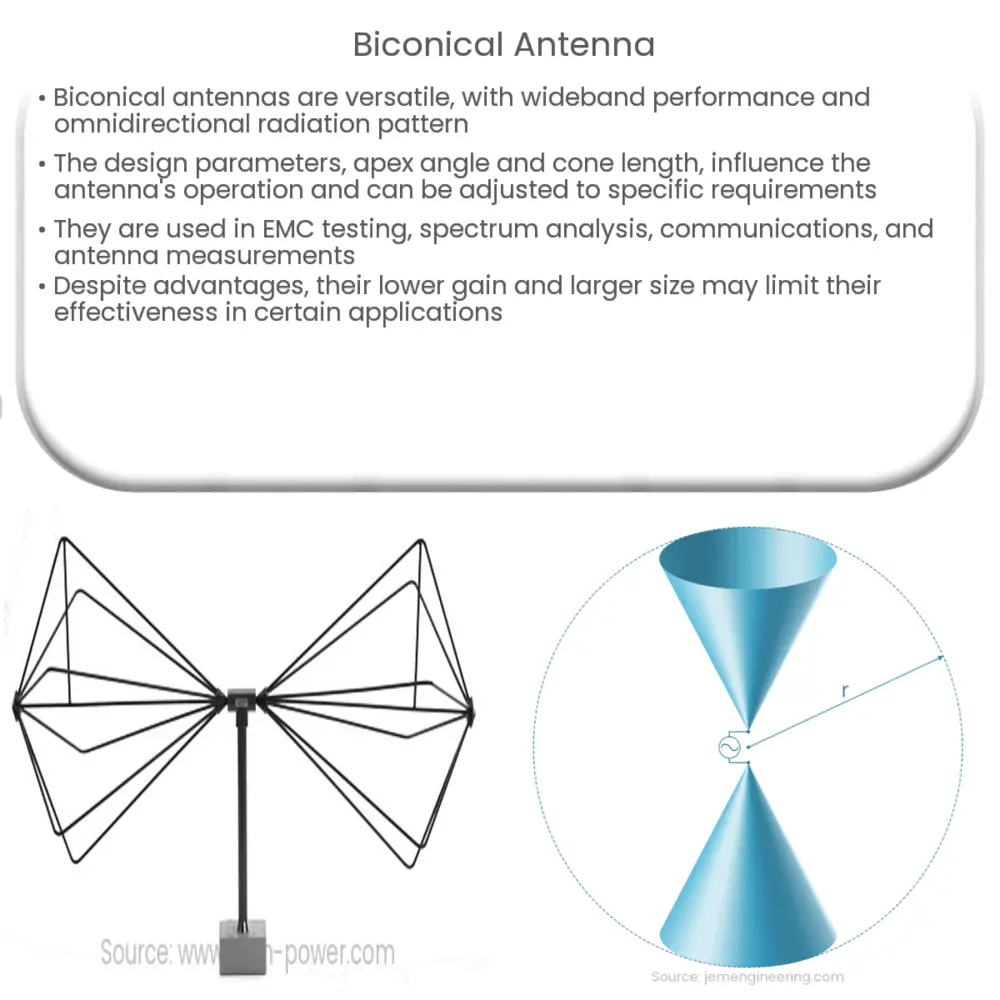

A biconical antenna consists of two conical elements, typically made from conductive material such as metal, arranged with their vertices facing each other. The cones are connected to a transmission line, usually a coaxial cable, which feeds the antenna with the RF signal. The angle between the cones, known as the apex angle, and the length of the cones are two critical design parameters that determine the antenna’s operating frequency range and radiation pattern.

When an RF signal is fed to the biconical antenna, it propagates along the cones and radiates energy into free space. The geometry of the cones causes the radiation to spread out in an omnidirectional pattern perpendicular to the antenna’s axis, providing uniform coverage in the horizontal plane. This makes biconical antennas suitable for applications requiring broad coverage and minimal directionality.

One of the main advantages of biconical antennas is their wideband performance. The antenna’s impedance remains relatively constant over a broad frequency range, allowing it to efficiently transmit and receive signals across various frequencies without significant signal degradation. This wideband characteristic is a result of the tapered structure of the cones, which enables the antenna to support multiple resonant modes and operate effectively across a wide range of wavelengths.

Design Parameters

As previously mentioned, the apex angle and cone length are crucial design parameters that influence the biconical antenna’s performance. The apex angle determines the antenna’s impedance and radiation pattern, while the cone length influences its operating frequency range. By adjusting these parameters, engineers can tailor the antenna’s characteristics to meet specific application requirements.

Increasing the apex angle generally results in a broader radiation pattern and a lower antenna impedance, which can be beneficial for applications requiring wide area coverage. However, a larger angle may also reduce the antenna’s gain and directivity, potentially limiting its effectiveness in some scenarios. On the other hand, increasing the cone length can extend the antenna’s operating frequency range, allowing it to cover a wider spectrum of frequencies. This flexibility in design makes biconical antennas a popular choice for various applications in the communications and testing industries.

Applications

Biconical antennas are employed in a variety of applications due to their wideband performance, omnidirectional radiation pattern, and flexible design parameters. Some common uses include:

• Electromagnetic Compatibility (EMC) Testing: Biconical antennas are often used in EMC testing to assess the electromagnetic emissions and susceptibility of electronic devices and systems. Their wideband capabilities and omnidirectional radiation pattern enable them to efficiently capture and measure radiated emissions across a broad range of frequencies.
• Spectrum Analysis: In spectrum analysis, biconical antennas are used to monitor and analyze the frequency spectrum for potential interference or to identify available frequency bands for communication. Their wideband performance makes them well-suited for capturing signals across a wide frequency range.
• Communications: Biconical antennas are used in various communication systems, including broadband, short-range, and long-range communication systems. Their wideband nature allows them to support multiple frequency bands, making them ideal for applications requiring versatility in frequency allocation.
• Antenna Measurements: In antenna testing and measurement, biconical antennas serve as reference antennas to evaluate the performance of other antennas. Their consistent impedance and predictable radiation pattern make them suitable for comparison and benchmarking purposes.

Advantages and Disadvantages

Like all antenna types, biconical antennas have their advantages and disadvantages. Understanding these factors can help in determining whether a biconical antenna is the right choice for a specific application.

Advantages

• Wideband Performance: Biconical antennas offer a broad operating frequency range, allowing them to support multiple frequency bands and operate effectively across a wide range of wavelengths.
• Omnidirectional Radiation Pattern: The biconical antenna’s omnidirectional radiation pattern provides uniform coverage in the horizontal plane, making it suitable for applications requiring broad coverage and minimal directionality.
• Flexible Design: The antenna’s design parameters, such as the apex angle and cone length, can be adjusted to meet specific application requirements, offering flexibility in terms of impedance, radiation pattern, and operating frequency range.

Disadvantages

• Lower Gain: Biconical antennas typically exhibit lower gain compared to other antenna types, such as directional antennas, which may limit their effectiveness in some applications.
• Size and Weight: Due to their conical structure, biconical antennas can be relatively large and heavy, potentially making them unsuitable for certain space-constrained or weight-sensitive applications.

Conclusion

Biconical antennas are a versatile and adaptable antenna type, offering wideband performance and an omnidirectional radiation pattern. Their flexible design parameters enable them to be tailored to meet specific requirements, making them suitable for a wide array of applications in the communication, testing, and measurement industries. However, their lower gain and potentially larger size should be considered when selecting an antenna for a particular application.
